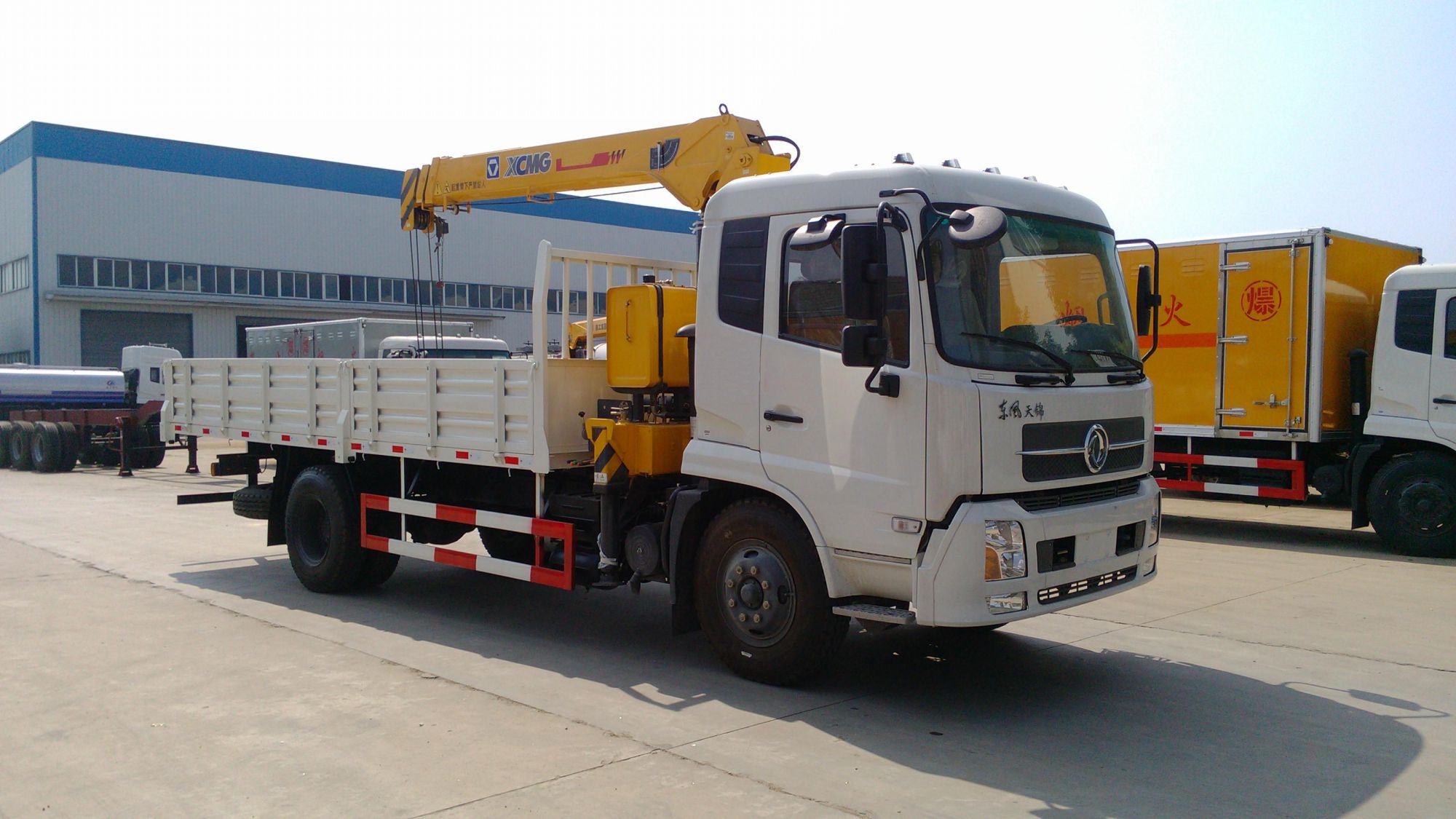

Dongfeng Kingrun DFL1120 Truck With Crane Export To Cuba

Share Us:

Date: Mar 23,2016 View:0

Truck Drive mode 4×4
Chassis DFL1120B
Engine Model Cummins EQH160-30
4 cylinder, inline, four stroke, electronically controlled common rail injection, turbocharged inter-cooled
Cab Single cab, 2 person
Gearbox DF6S750, Manual, Forward Gear: 6, Reverse gear for several: 1
Axle Front Axle 3.3T
Rear Axle 8T
Rear axle ratio 4.875
Spring Leaf 10/10+8
Dimensions Overall dimension (mm) 7280×2500×2910
Wheel base (mm) 4200
Front/Rear tread(mm) 1896/1800
Mass Payload (Kg) 5500
Curb weight(Kg) 4795
G.V.W (Kg) 10490
Tyre Size 9.00-20
Performance Speed(Kw/h) 85
Crane (SQ4SK2Q) Crane Weight (Kg) 1500
Max. Lifting Capacity (Kg) 4000
Max. Lifting Moment (T.M) 20(Folding)
Lifting Capacity/Working Radius (Kg/m) 2375/7.815
3270/6.050
4285/4.670
6750/3.000
Max. Working Radius (m) 7.815
Max. Working Height (m) 10
