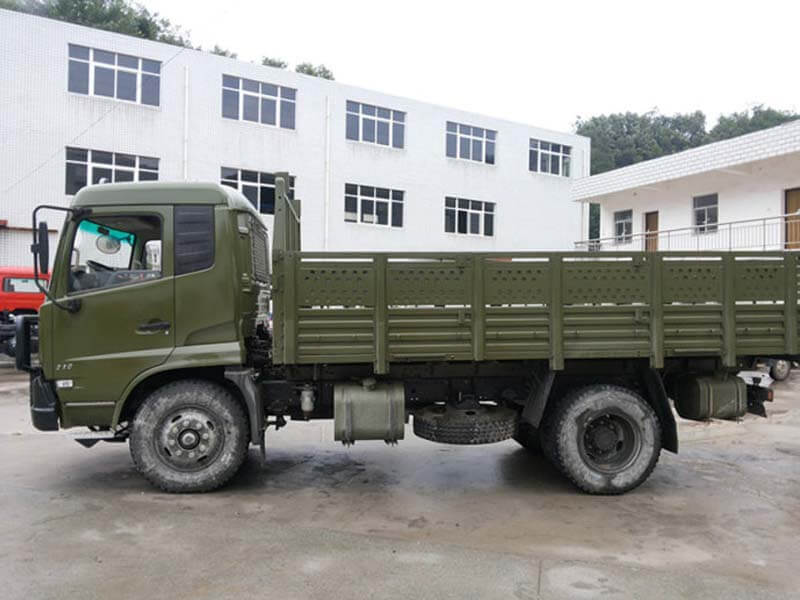

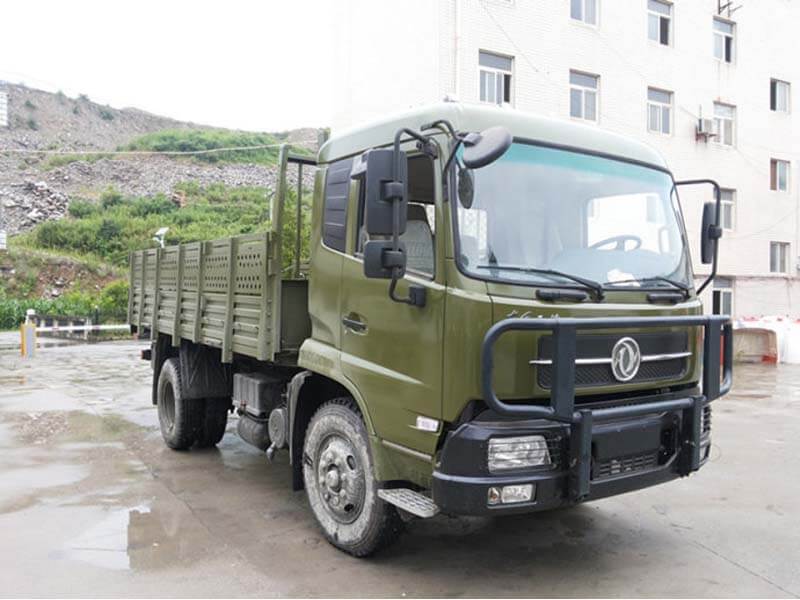

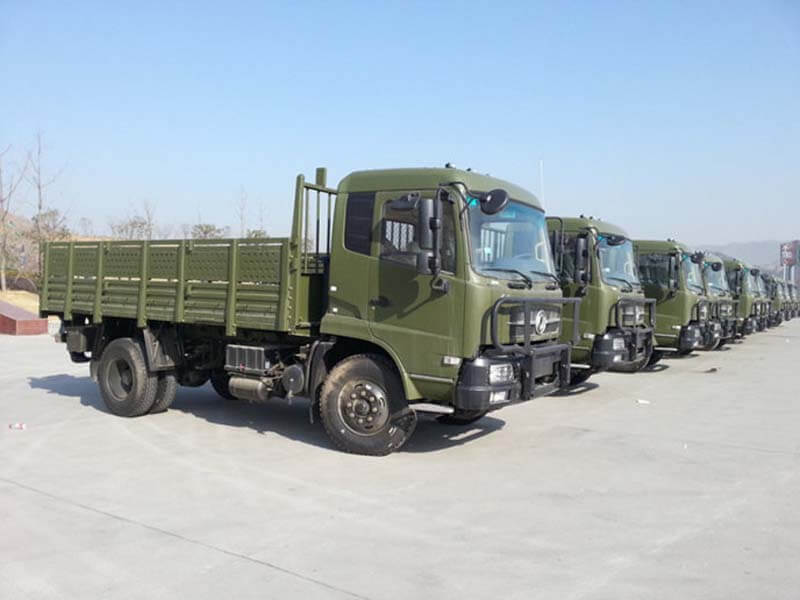

Dongfeng EQ1120 4x4 Military Truck, Troop Truck

  • Chassis Dongfeng chassis
  • Engine Cummins engine
  • Gearbox FAST gearbox
  • Loading capacity 10-20T

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng 4x4 chassis

Engine: Cummins engine

Gearbox: FAST gearbox

Loading capacity: 10-20T

parameter

Drive mode 4×2
Cab Single  row with sleeper 3 person
Engine Model Cummins  Isde 210-30
Type  6-cylinder in line, water-cooling, four-stroke and Turbo charging  electrical control diesel engine
Max. power(Kw/rpm) 155/2500
Max. torque(N.m/rpm) 800/1200-1700
Cylinder bore ×Stroke(mm) 107×124
Displacement(ml) 6700
Type of fuel Disel
Compression ratio 17.3:1
Gearbox Type DF6S900, 6 speed  mechanacial gearbox
  6.938, 3.996,2.32,1.493,1,0.814,6.188®
Axle Front Axle:4.5T Rear Axle: 9Ton
  Front /Rear Axle Loading Weight(Kg) 4255/8100
Clutch Φ395  Diaphragm clutch, Hydraulic Operating
Suspension Leaf  spring   9/12
Frame Cross-section (mm) 232×75×6.5
Performance Max. speed(km/h) 107
Max.gradeability (%) 44
Ful Consumption(L) 18
Min Turing Diameter(m) 16
Braking Distance(m) 8
Dimensions Overall dimension (mm) 7310×2495×2840
Inner dimension (mm) 4270×2294×900
Wheel base (mm) 3,800
Front/Rear tread(mm) 1880/1800
Min.Ground Clearance (mm) 240
App./Dep. angel (°) 22/19
Mass Loading Weight(Kg) 6000
Curb Weight(Kg) 6160
Full Loading Weight(Kg) 12355
  Traction Weight(Kg) 6000
Tyre 0
Traction N 44100
Rim  7.00T-20
