  • Dongfeng DFS1128 4x4 10-20T Cargo Truck Chassis
  • Dongfeng DFS1128 4x4 10-20T Cargo Truck Chassis

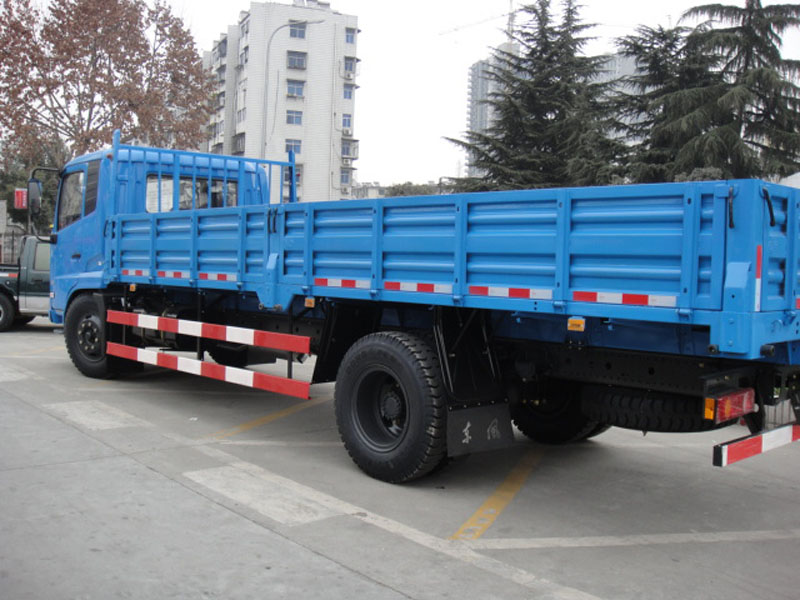

Dongfeng DFS1128 4x4 10-20T Cargo Truck

  • Chassis Dongfeng chassis
  • Engine Cummins engine
  • Gearbox FAST gearbox
  • Loading capacity 10-20T

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng 4x4 chassis

Engine: Cummins engine

Gearbox: FAST gearbox

Loading capacity: 10-20T

parameter

Model: DFS1128GL6
Engine
Model CUMMINS EQB180-33
Type Diesel, Direct Injection,Turbo charged with Intercooler
Max. Engine Output(HP or KW/rpm) 132 KW(180HP)
Max. Tourque (N.m/rpm): 700 Nm @ 1500 rpm
Cylinder Displacement L/cc 5900 ml
Emission: Euro2
Gear Box MT / Forward 6 & Reverse 1
Model 6JS850
Suspension Strengthen spring
Type Spring Leaf Tablet: 9/11+8
Brakes Front&Rear drum,dual-circult service brakding system
Clutch
Type: Single,dry,diaphragm spring clutch⊙395
Overall Dimensions (LxWxH) mm: 8900×2470×3120
Wheel Track (front/rear) mm: 1816 / 1800
Overhang (Front/Rear) mm: 1250 / 2650
Driving Type: 4×4
Wheel Base (mm): 5000
Min ground clearence (mm): 284
Vehicle Weight
Curb weight (kg): 6000
Pay Load Capacity (kg): 6000
Gross vehicle weight (kg): 12000
Load Body
LxWxH (mm) 5800~6600×2300×---
Cabin: LHD 1+2 seats / 2 doors + 1 bed
Steering
Type: Power steering
Wheels & Tyres
Front: Tire Number: 2, Tire Size: 9.00-20
Mid:
Rear: Tire Number:4, Tire Size: 9.00-20
Performance
Max speed (km/h): 85
