  • Dongfeng DFL1120 16-25M Aerial Working Platform Truck

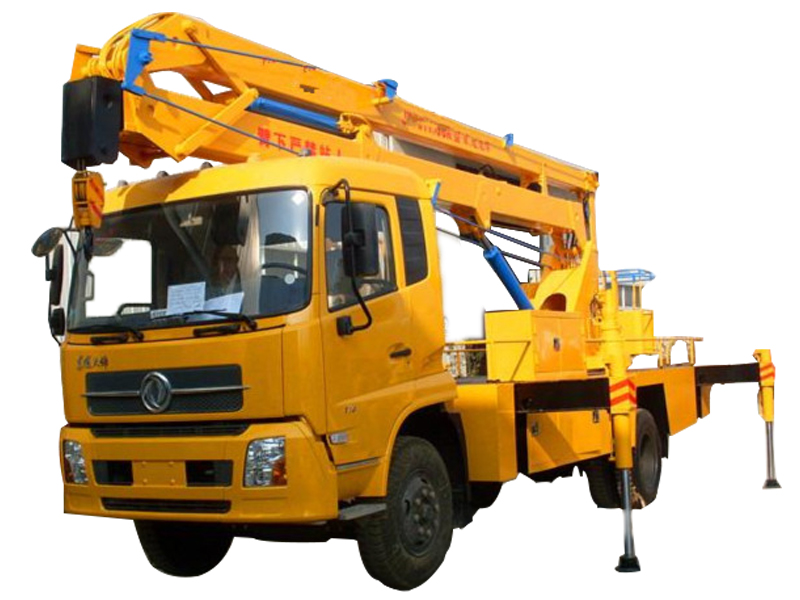

Dongfeng DFL1120 16-25M Aerial Working Platform Truck

  • Chassis Dongfeng chassis
  • Engine Cummins
  • Certificate ISO, CCC
  • Working height 16-25m

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng chassis

Engine: Cummins

Certificate: ISO, CCC

Working height: 16-25m

parameter

Truck

Drive mode

4×2

Chasis

DF1120B

Engine

Model

Cummins ISDe180 30

Type

4-cylinder in line, turbocharging, electrical control common-rail engine

Max. power(Kw/rpm)

136/2500

Max. torque(Kw/rpm)

650/1200-1700

Bore /Stroke(mm)

107×124

Displacement(ml)

4500

Type of fuel

Diesel

Compression ratio

17.3:1

Tyre

Size

9.00-20

Dimensions

Overall dimension (mm)

8600×2500×2830

Wheel base (mm)

4700

Front/Rear tread(mm)

1880/1860

Appr./Depa. angel (°)

20/11

Performance

Max. speed(Km/h)

90

Mass

Payload(Kg)

5930

Curb weight((Kg)

5880

G.V.W (Kg)

12005

Special Function

Max.height of operation(m)

16-25

Max.radius of operation(m)

11.5

Angle of revolution(°)

360

Rated load of working platform(Kg)

200

Rated sling load(Kg)

1000

Front protraction(mm)

640

Rear protraction(mm)

180
