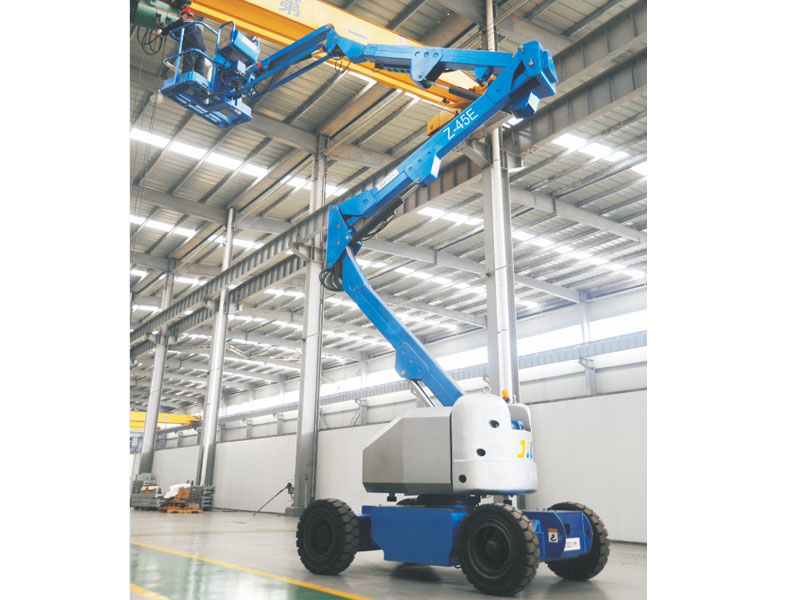

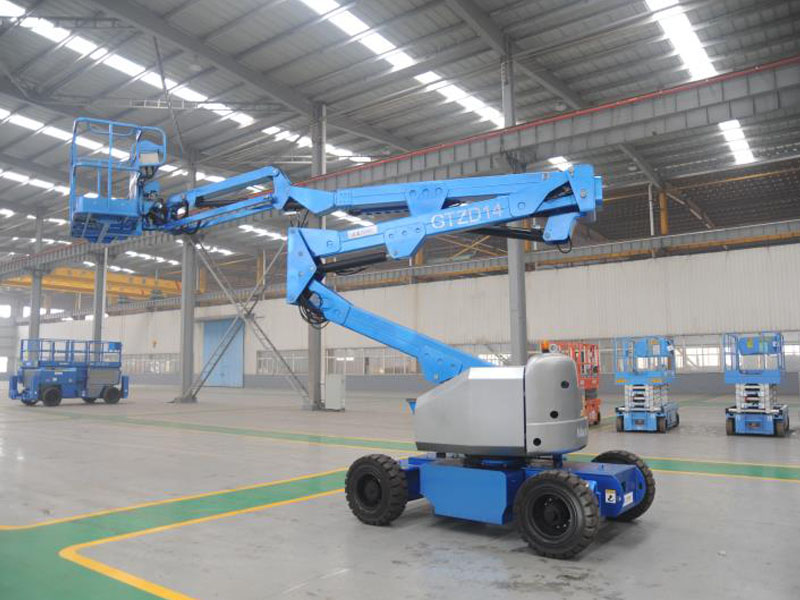

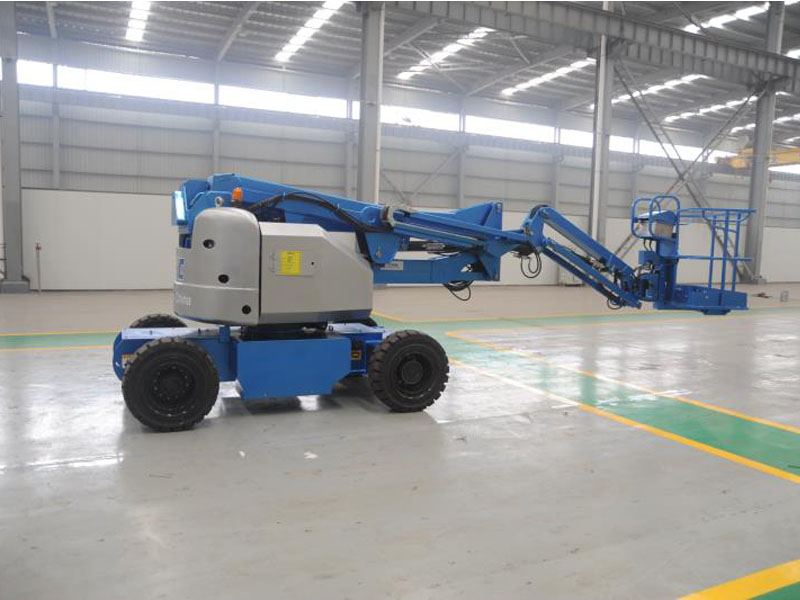

Dongfeng Jianghe Brand Electrcal Articulating Aerial Working Platform 14-17m

  • Battery Trojam USA
  • Working Height 14-17m
  • Certificate IPAF, CCC, CE
  • Drive type Electrical hydraulic drive

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:
Max working height (unrestricted): 14-17m
Max working load (unrestricted): 230kg
Drive: Electrcal drive
Power: 48V

parameter

Model

Z-40E

Z-45E

Z-52E

Lift capacity (kg)

200

230

230

Max.platform occupancy

2

2

2

Working height (m)

14

15.7

17.8

Platform height (m)

12

13.7

15.8

Max.horizontal extension (m)

8

7.4

10

Max.up & over clearance (m)

5

7.4

7.6

Platform size (L*W*H) (m)

1.53*0.76*1.1

1.53*0.76*1.1

1.53*0.76*1.1

Overall height (m)

2

2

2

Overall length (m)

5.32

5.54

7.9

Overall width (m)

1.75

1.75

2.28

Wheelbase (m)

2

2

2.2

Min.Ground Clearance (m)

0.2

0.2

0.2

Turnable rotation (°)

355 non-continuously

355 non-continuously

360 continuously

Platform rotation (°)

120

160

160

Drive speed (platform lowered) (km/h)

3.2

5.2

5

Drive speed (platform elevated) (km/h)

0.8

0.8

0.8

Min.turning radius-outside (m)

4.5

4.5

4.8

Gradeability (%)

25

30

30

Turnable tail swing (m)

0.125

0

0

Airless tire

250*150

250*150

250*150

Motor

48 V DC

48 V DC

48 V DC

Battery

8x6V/320Ah

8x6V/420Ah

8x6V/420Ah

Driving system (kw)

6.5*2

6.5*2

6.5*2

Auxiliary power (V)

12 V DC

12 V DC

12 V DC

Hydraulic tank (L)

40

70

70

Weight (kg)

5300

6500

6780

Proportional control

 Optional

AC power to platform

Manual emergency pump

Hour meter

Tilt protection system

Overload sensor

Turnable rotation 360° continuous

Auto leveling platform

Foot switch

Platform working light

4*2 AC drive

Eva tires

Fault diagnosis system

Buzzer

Solid non-marking tires

Horn

Strobe light

Zero emission
