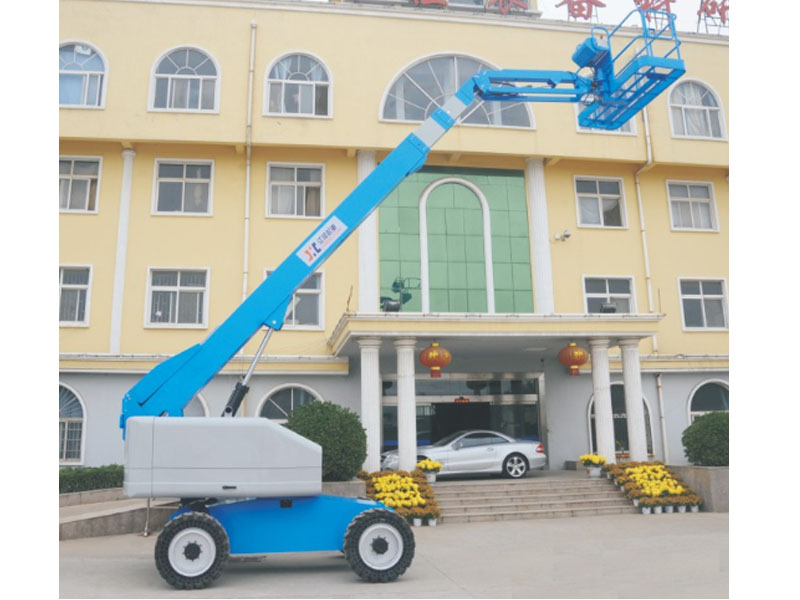

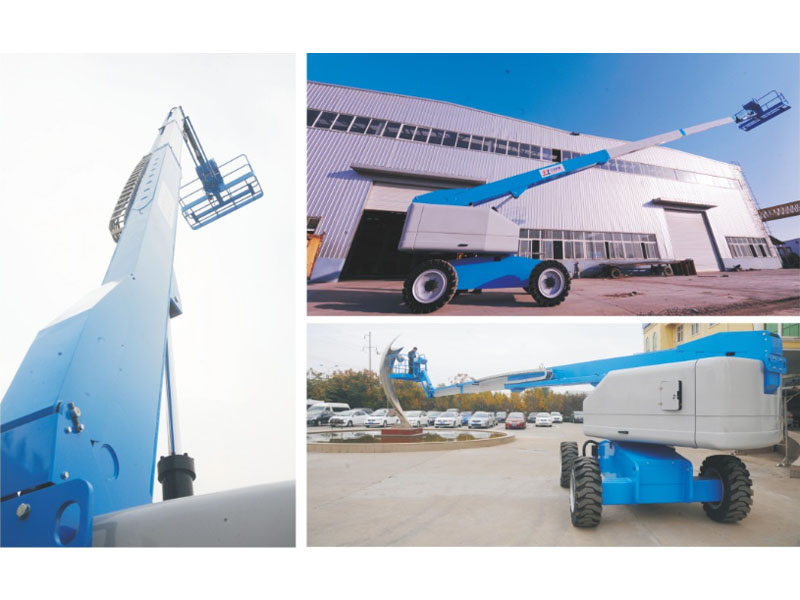

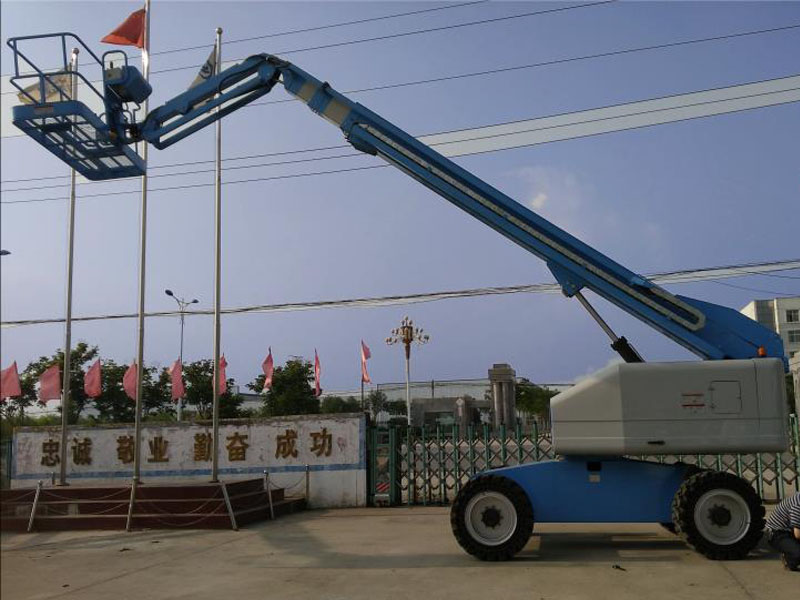

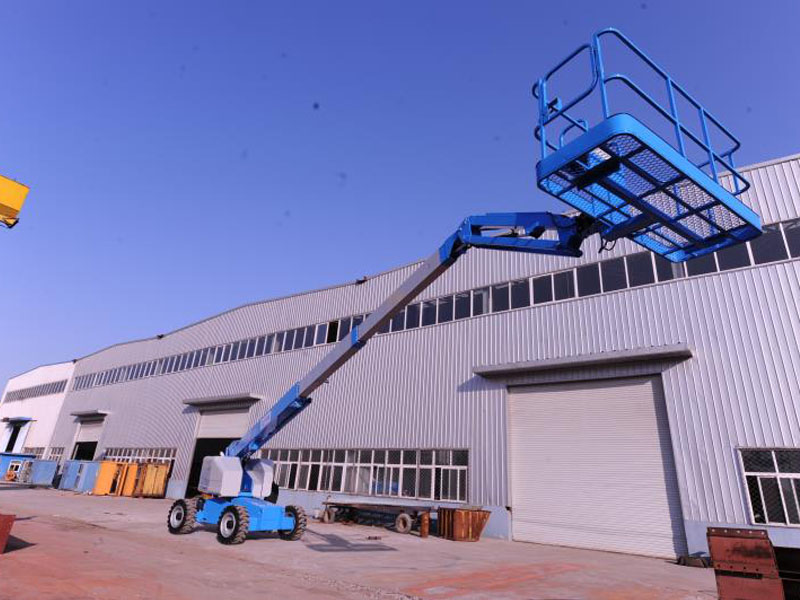

Dongfeng Jianghe Brand Self propelled Telescopic Boom Aerial Working Lifitng Platform 20-40m

  • Engine Cummins/ Perkins
  • Working Height 20-40m
  • Certificate IPAF, CCC, CE
  • Drive type Engine drove

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:
Max working height (unrestricted): 20-40m
Max working load (unrestricted): 230-340kg
Drive: Cummins/Perkins engine

parameter

Model S-60 S-66J S-72J S-80J S-86J S-98J S-105J S-125J
Lift capacity (kg) 230 230 230 230 200 200 340 340
Max.platform occupancy 2 2 2 2 2 2 2 2
Working height (m) 20.3 22.3 23.9 25.4 28.4 31.3 33.7 40.1
Platform height (m) 18.3 20.3 22.2 23.7 26.7 29.6 32 38.4
Max.horizontal extension (m) 15.09 17.3 20.2 20.3 23.4 21.2 24.4 24.4
Platform size (L*W) (m) 0.91*2.43 0.91*2.43 0.91*2.44 0.91*2.44 0.91*2.44 0.91*2.44 0.91*2.44 0.91*2.44
Overall height (m) 2.67 2.67 2.7 2.7 2.8 2.8 3.08 3.08
Overall length (m) 8.45 10.27 10.69 11.3 12.46 13.5 14.02 14.1
Overall width (m) 2.43 2.43 2.5 2.5 2.5 2.5 3.35 3.35
Wheelbase (m) 2.46 2.46 2.5 2.5 3 3 3.66 3.66
Min.Ground Clearance (m) 0.3 0.3 0.43 0.43 0.43 0.43 0.43 0.43
Turnable rotation (°) 360 continuously 360 continuously 360 continuously 360 continuously 360 continuously 360 continuously 360 continuously 360 continuously
Platform rotation (°) 160 180 160 160 160 160 160 160
Drive speed (platform lowered) (km/h) 6.8 6.8 6.3 6.3 5.3 5.3 4.4 4.4
Drive speed (platform elevated) (km/h) 0.8 0.8 1.3 1.1 1.1 1.1 1.1 1.1
Min.turning radius-inside (m) 2.4 2.4 3 3 3.59 3.59 4.14 4.14
Min.turning radius-outside (m) 5.13 5.13 5.2 5.2 6.25 6.25 6.56 6.56
Gradeability 2WD (%) 45 45 45 30 30 30 30 30
Gradeability 4WD (%) 45 45 45 45 45 45 45 45
Tire 38.5*14-20 38.5*14-20 9.00-20 9.00-20 12.00-20/8.5 12.00-20/8.5 12.00-20/8.5 12.00-20/8.5
Engine Cummins/perkins Cummins/perkins Cummins/perkins Cummins/perkins Cummins/perkins Cummins/perkins Cummins/perkins Cummins/perkins
Auxiliary power 12 V DC 12 V DC 24 V DC 24 V DC 24 V DC 24 V DC 24 V DC 24 V DC
Hydraulic tank (L) 120 120 190 190 190 190 265 265
Fuel tank (L) 130 130 150 150 150 150 150 150
Weight 2*2 drive (kg) 12140 12640 13140 13640 16440 16940 18660 20160
Weight 4*2 drive (kg) 12220 12720 13220 13720 16520 17020 18740 20240
