  • Dongfeng DFA1045 Refrigerator Truck

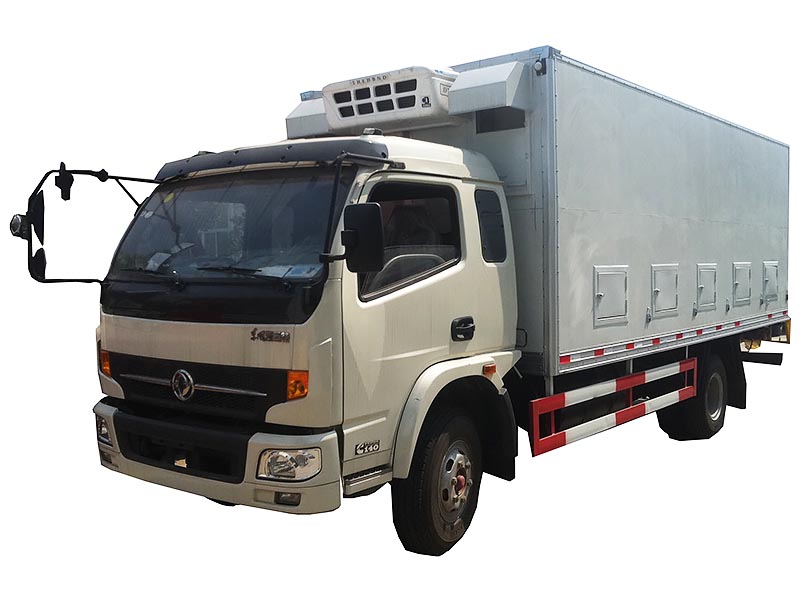

Dongfeng DFA1045 Refrigerator Truck

  • Chassis Dongfeng chassis
  • Engine Cummins engine
  • Freezer system Hanxue, Carrier or Thermo King unit

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng chassis

Engine: Cummins engine

Freezer system: Hanxue, Carrier or Thermo King unit

parameter

Dimension(mm)

Outer

5995x2090x2560

Wheel Base(mm)

3300

Tread(F/R)(mm)

1586/1530

F/R suspension

1115/1580

Weight(kg)

Curb Weight(kg)

2750

Payload(Kg)

5000

G.V.W(kg)

6850

Engine

Engine type

EQB125-30

Emission standard

Euro III

Power

92/2800

Torque

410/1500

Bore*Stroke(mm)

102x120

Displacement(ml)

3922

Performance

Max Speed(kg/h)

105

Max Gradeability

30

Min Turning Radius(m)

7.5

Power steering

Equipped

Brake

air

Battery

24V

Tire

7.5R16

Cabin

Heater

Equipped

Air conditioner

Option

Air conditioner

Optional

Centrul Lock and Power Window

Optional

Specification of freezer van

Overall dimension of body (mm)

4150×1900×1600

Thickness of van (mm)

100

Inside and outside of van's material

FRP(Fiber Reinforced Plastics)

Middle of van's material

Polyurethane

Insulation layer

Under 120kPa high pressure,overall foam

Rear doorpost

stainless steel

ventilation opening

yes

Refrigerating capacity

4689

Refrigerant

404A

Min. temperature(℃)

-20
