  • Dongfeng DFL1120 10-15T Refrigerator Truck

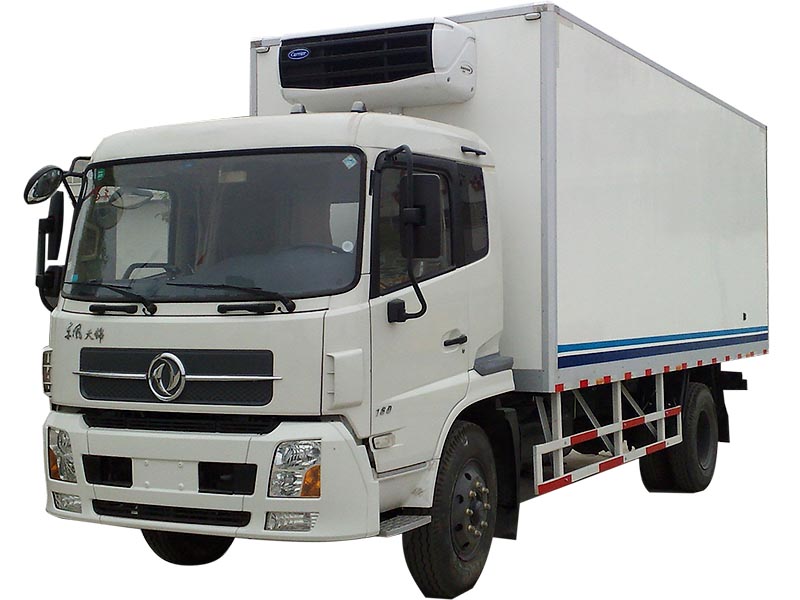

Dongfeng DFL1120 10-15T Refrigerator Truck

  • Chassis Dongfeng chassis
  • Engine Cummins engine
  • Freezer system Hanxue, Carrier or Thermo King unit

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng chassis

Engine: Cummins engine

Freezer system: Hanxue, Carrier or Thermo King unit

parameter

Truck

Drive mode

4×2

Chassis

DFL1120B

Engine

Model

Cummins ISDe180 30

Type

4-cylinder in line, turbocharging, electrical control common-rail engine

Max. power(Kw/rpm)

136/2500

Max. torque(Kw/rpm)

650/1200-1700

Bore /Stroke(mm)

107×124

Displacement(ml)

4500

Type of fuel

Diesel

Compression ratio

17.3:1

Dimensions

Overall dimension (mm)

8530×2495×3840

Wheel base (mm)

5000

Front/Rear tread(mm)

1880/1800

App./Dep. angel (°)

20/13

Performance

Max. speed(Km/h)

90

Mass

Payload (Kg)

5900

Curb weight(Kg)

6400

G.V.W (Kg)

12495

Special functions

Specifications

Overall dimension of body (mm)

6000×2260×2300

Refrigerating capacity

4689

Refrigerant

404A

Inside and outside of van's material

FRP(Fiber Reinforced Plastics)

Middle of van's material

Polyurethane

Insulation layer

Under 120kPa high pressure,overall foam

Rear doorpost

stainless steel

ventilation opening

yes

Min. temperature(℃)

-15

Special configration

adopt to Korea's HT-500 non-independent unit
