  • Dongfeng DFL1160 Refrigerator Truck

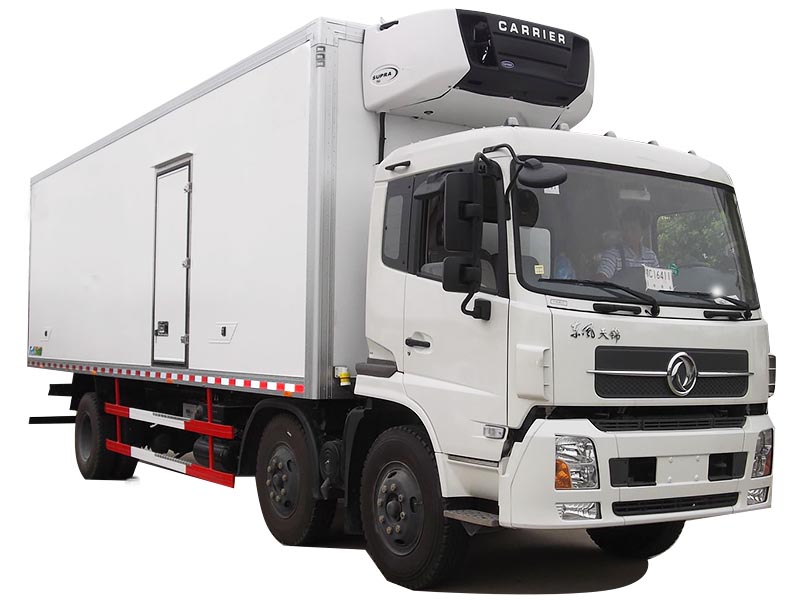

Dongfeng DFL1160 Refrigerator Truck

  • Chassis Dongfeng chassis
  • Engine Cummins engine
  • Freezer system Hanxue, Carrier or Thermo King unit

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng chassis

Engine: Cummins engine

Freezer system: Hanxue, Carrier or Thermo King unit

parameter

Drive mode

6×2

Engine

Model

Cummins B190 33

Type

6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR

Max. power(Kw/rpm)

140/2500

Max. torque(N.m/rpm)

670/1300-1500

Cylinder bore ×Stroke(mm)

102×120

Displacement(ml)

5900

Type of fuel

Diesel

Compression ratio

(17.3±0.5):1

Cab

D530

one and a half rows

Capacity

3 persons

Gearbox

Type

DF6S900(1)

Max. torque(N.m)

900

Clutch

Φ395mm

push-type diaphragm spring clutch

Frame H×W× T(mm)

250×80×(7+4)

Axles

Front axle(Kg)

3600×2

Rear axle(Kg)

10000

No. of spring leaves

10/10/10+8

Tyre

Size

9.00-20

Air conditioner

A/C

Dimensions

Overall dimension(mm)

11000×2500×2840

Inner dimension(mm)

8600×2294×600

Wheel base(mm)

1700+5100

Front/Rear tread(mm)

1913/1913,1860

App./Dep. angel (°)

23/12

Performance

Max. speed(Km/h)

90

Max. gradeability(%)

30

Min. turning diameter(m)

17

Mass

Payload(Kg)

13,000

Curb weight(Kg)

7,850

G.V.W(Kg)

20,860.00

Specification of refrigerator

Overall dimension of body (mm)

6000×2260×2300

Refrigerating capacity

4689

Refrigerant

404A

Inside and outside of van's material

FRP(Fiber Reinforced Plastics)

Middle of van's material

Polyurethane

Insulation layer

Under 120kPa high pressure,overall foam

Rear doorpost

stainless steel

ventilation opening

yes

Min. temperature(℃)

-15

adopt to Korea's HT-500 non-independent unit
