  • Dongfeng DFL1311 8x4 16-25T Truck Mounted With Crane

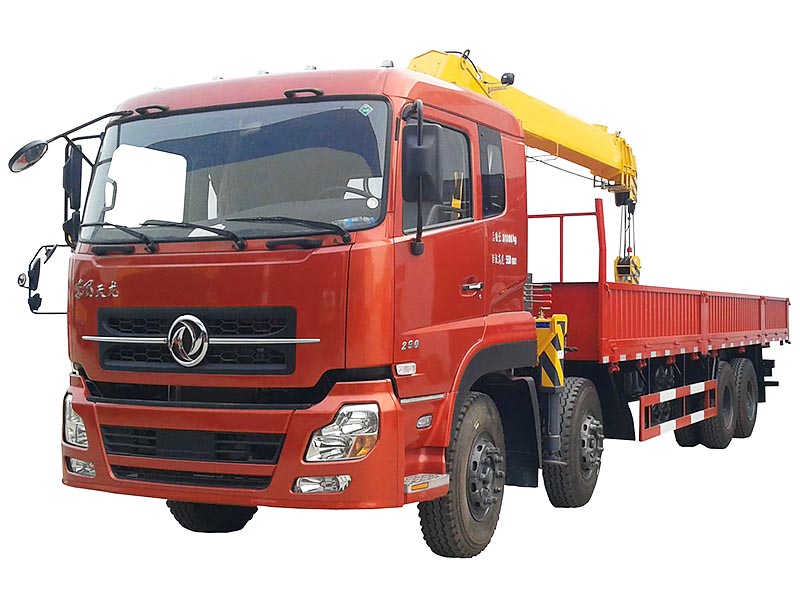

Dongfeng DFL1311 8x4 16-25T Truck Mounted With Crane

  • Chassis Dongfeng chassis
  • Engine Cummins, Yuchai
  • Certificate ISO, CCC
  • Crane XCMG brand

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng chassis

Engine: Cummins, Yuchai

Certificate: ISO, CCC

Crane: XCMG brand

Capacity: 16-25T

parameter

Drive mode

8×4

Engine

Model

Cummins C260 33

Type

6-cylinder in line, turbocharging and inter cooling, mechanical injection bump, built-in EGR

Max. power(Kw/rpm)

191/2200

Max. torque(N.m/rpm)

1025/1400

Cylinder bore ×Stroke(mm)

114×135

Displacement(ml)

8300

Type of fuel

Diesel

Compression ratio

18:1

Cab

D310-H1

high roof, double sleeper

Capacity

3 persons

Gearbox

Type

Fast 9JS119T-B

Max. torque(N.m)

1190

Clutch

Φ430mm

push-type diaphragm spring clutch

Frame H×W× T(mm)

300×80×(8+4)

Axles

Front axle(Kg)

5000×2

Rear axle(Kg)

10000×2

No. of spring leaves

8/8/10

Tyre

Size

11.00R20

Air conditioner

A/C

Dimensions

Overall dimension(mm)

11980×2500×3200

Inner dimension(mm)

9400×2294×800

Wheel base(mm)

1950+4500+1300

Front/Rear tread(mm)

1940/1860

App./Dep. angel (°)

28/12

Min. ground clearance(mm)

240

Performance

Max. speed(Km/h)

90

Mass

Payload(Kg)

26,000

Curb weight(Kg)

12,505

G.V.W(Kg)

38,505

Max. Lifting capacity

16000-25000kg

Rated hydraulic pressure---28MPa

Max. Lifting moment

45T.m

Oil tank capacity--250L

Recommended power

50KW

rotation angle--360°

Lifting height

14M

Working radius---11.4m

Dead weight

6800KG

Installation space--1.6m

Recommended hydraulic flow

50L/min
