  • Dongfeng DFL4251 6x4 Heavy Duty Tractor Truck

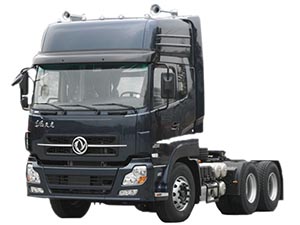

Dongfeng DFL4251 6x4 Heavy Duty Tractor Truck

  • Chassis Dongfeng chassis
  • Engine Cummins engine
  • Gearbox FAST gearbox
  • Loading capacity 50-80T

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng chassis

Engine: Cummins engine

Gearbox: FAST gearbox

Loading capacity: 50-80T



parameter

Drive mode 6×4
Engine Model Cummins L340 20
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, built-in EGR
Max. power(Kw/rpm) 250/2200
Max. torque(N.m/rpm) 1350/1400
Cylinder bore ×Stroke(mm) 114×145
Displacement(ml) 8900
Type OF Fuel Diesel
Compression ratio (16.6±0.5):1
No. of valves 4
Cab D310-H1 height ceiling, double berth
Capacity 3 persons
Gearbox Type Fast 12JS180T
Max. torque(N.m) 1800
Gear ratio 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00
Clutch Φ430mm pull-type diaphragm spring clutch
Frame H×W× T(mm) 300×90×(8+5)
Frame width 940 (front ), Frame width 810 ( rear )
No. of spring leaves 3/10
Tyre Size 12.00R20
Air conditioner A/C
Dimensions Overall dimension (mm) 7060 ×2500×3700
Wheel base (mm) 3400+1350
Front/Rear tread(mm) 2027/1820
App./Dep. angel (°) 18/32
Min. ground clearance(mm) 300
Performance Max. speed(Km/h) 98
Max. gradeability(%) 35
Min. turning diameter(m) 16
Fuel consumption(L/100Km) 38
Mass Curb weight(Kg) 9950
G.V.W (Kg) 25000
Trailer G.V.W(Kg) 40000
