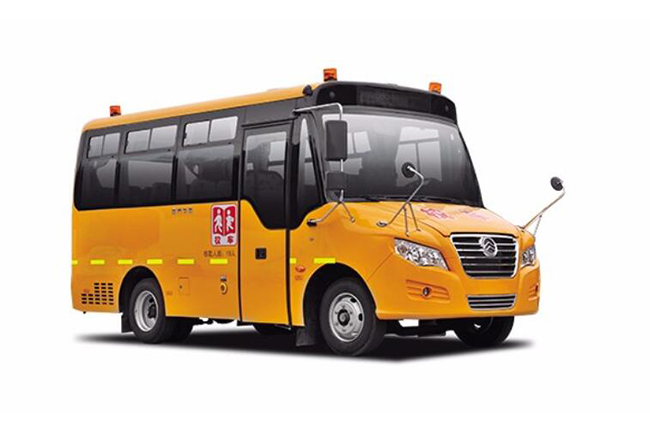

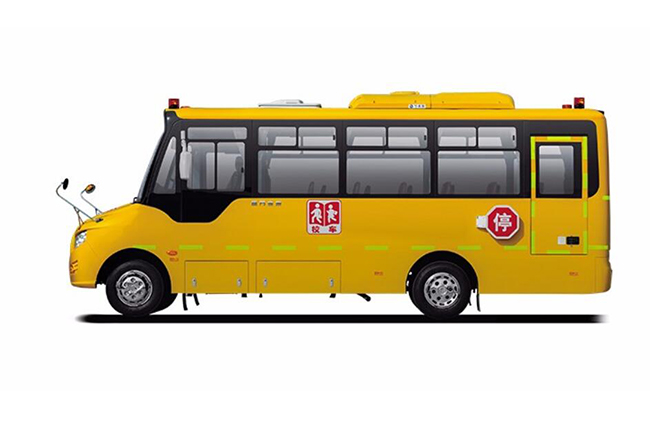

Golden Dragon School bus-Henan Tarzan Industrial Co., Ltd.

Features

01 Warm interior design, bright seating space. The vehicle has a flat floor design and the seat is in the form of a low backrest and a soft wrap. Large panoramic mirrors are available in the car. It adopts CAN bus instrument, ETA circuit breaker, Panasonic relay, imported VDO oil pressure sensor, imported Ampu connector and other safe and reliable electrical design, equipped with parking sign and speed limit device, and can also add tire pressure alarm system and intelligence. Counting system to further protect student safety.
02 Optimize system configuration to ensure safe driving. Front-extending engine arrangement with fuel tank anti-collision device and front and rear anti-collision beams. Disc brakes and new retarders can be used to improve the safety of the service brakes. A reasonable drive configuration makes the drive system less noisy. The clutch and travel brake are pneumatically assisted and equipped with long-distance double-flexible speed shifting. The shifting is light and comfortable. It provides a good driving environment for the driver and provides a stronger guarantee for the safety of the children. The suspension and steering system has been optimized and upgraded with front and rear stabilizer bars to significantly improve the handling and lightness of the vehicle and the stability of the roll to ensure safe driving. Optional front wheel tire emergency safety device, ABS car brake anti-lock system and other safety devices to further improve the safety factor of the vehicle!

Specifications

Model series	XML6601	XML6661	XML6721	XML6791
Length x width x height (mm)	5995x2400x2800,2940,3000	6645x2400x2940,3000	7245x2400x2940,3000	7900x2400x2940,3000
Wheelbase (mm)	3310	3650	4000	4600
Number of seats for young children	10-19,24-27	24-32	24-37	24-45
Number of seats for primary school students	10-19,24-27	24-32	24-37	24-42
Number of seats for primary and secondary school students	10-19	24-27	24-27	24-31
Seat and guardrail	Student-specific seat, caregiver seat, full car seat belt, softening guardrail
Body	Bearing type, constant pressure rigid body closed ring structure
Car window	Push up and down to fix the tempered glass
Passenger door	Pneumatic swing door, standard emergency safety door
rearview mirror	Panoramic rear view mirror
air conditioning	Optional Songzhi non-independent overhead air conditioner
Safety Facilities	Flip parking signal arm, parking indicator light, mailbox anti-collision device
Gearbox	Five-speed gearbox
Axle	Front drum rear drum bridge
Steering gear	Power steering
engine	YC4FA115-40	YC4FA115-40	YC4FA130-40	YC4D140-41
Rated power (KW/r/min)	85/3200	85/3200	95/3200	103/2800
Maximum torque (N ● m / r / min)	300/1600-2400	300/1600-2400	340/1600-2400	450/1400-1800
