Passenger
vehicles
Transmission | 5MT | ||
Parameters | L×W×H(mm) | 5290*1890*1810 | 5290*1890*1810 |
Wheelbase(mm) | 3150 | ||
Tread (Front/Rear)(mm) | 1570/1570 | ||

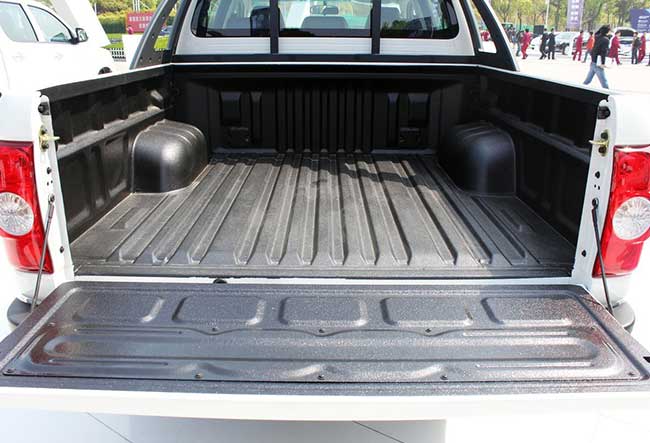

Cargo box L×W×H(mm) | 1510*1562*475 | ||
Min. ground clearance(mm) | 207 | ||
Min. turning radius(m) | 6.4 | ||
G.V.W. (kg) | 2525 | 2525 | |
Curb weight (kg) | 1710 | 1710 | |
Load capacity (kg) | 490 | 490 | |
Approach angle/Departure angle(°) | 31/20 | ||
Max. gradeability(%) | 30 | ||
Passenger numbers | 5 | ||
Fuel tank(L) | 73 | ||
Max. speed (km/h) | 150 | ||
Engine | Model | 2TZD | |
Displacement (mL) | 2438 | ||
Max. power (Kw) | 116 | ||
Max. torque (Nm) | 230 | ||
Driving mechanism | Braking | Front disk, rear drum | |
Suspension | Front: Double-wishbone independent | ||
Rear: Steel spring | |||
Tyre | 255/70R16 |
