Passenger
vehicles
Overall specification | 12000*2550*3860 mm |
Max. Speed (km/h) | 120 (Speed limit to 120 km/h) |
Luggage compartment (m³) | 11.5 |
Engine model | Cummins L360 20 |
Displacement ( L) | 8.9 |
Fuel Tank Capacity (L) | 600 |
Emission Standard | EURO 2 |
Clutch | SACHS |
Gearbox &Retarder | Fast 6DS-148 with Retarder TB24 |
Axle | Jingyida front axle, Dongfen rear axle |
Suspension system | Leaf spring suspension |
Steering System | Integral power steering system |
Braking System | Dual-circuit air braking |
Tire | 6+1 295/80 R22.5 Tubeless Tire |
Door | Pneumatic front and middle doors, remote control lock |
Windows | Upper fix and lower sliding window |

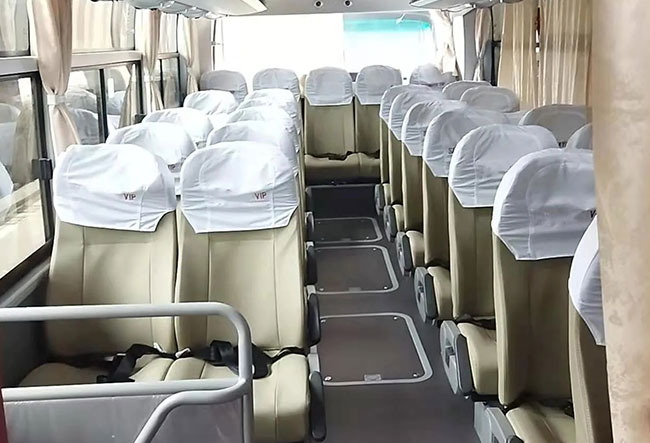

seats | 41+1+1 seats, including 12 VIP seats(2+1 per row)forward, 29 bussiness seats(2+2 per row)rear |
A/C | 32000 kcal/h, imported Compressor |

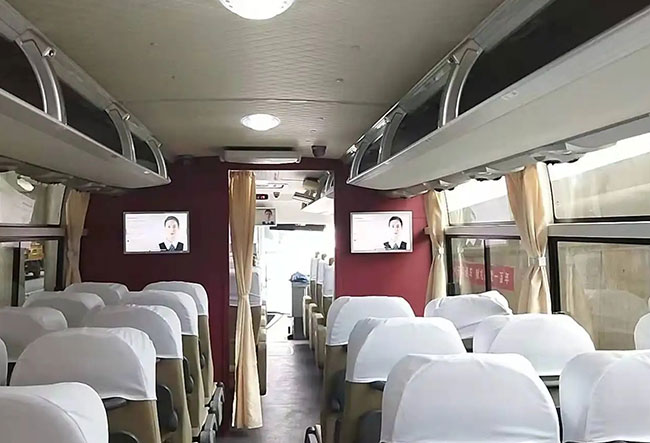

Video system | Hard-disc player,front 19` Digital high definition display + middle 19`Digital high definition display, wire microphone CCTV surveillance system with 5 cameras |
Fire Extinguisher | 2kg fire extinguisher for passenger cabin, 2 automatic fire extinguishing for engine compartment |
Rear view system | Electronic Rabbit ear rear view mirror |
