Zhongtong Bus
Coach Bus

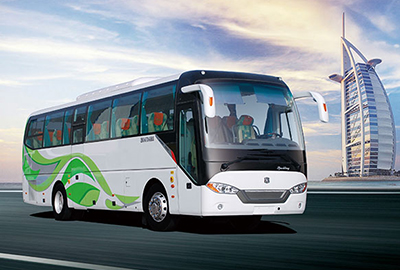

Zhongtong Bus launched the new LCK6120A long-distance bus in 2022, which has been upgraded in all aspects, especially in terms of braking capacity and driving safety. The cooling system has been upgraded and the fuel consumption has been greatly reduced. The brakes are dual-circuit air brakes and drum brakes. The size of the bus is 11450mm in length, 2550mm in width, 3850mm in height, and the wheelbase is 5800mm. Its top speed is 120km/h, the gearbox is S6-160, ZF technology, and six gears. The fuel tank capacity of the Zhongtong bus is 400 liters + 400 liters, with a clutch coil spring, 430, and the suspension is a multi-leaf spring suspension. Zhongtong bus seat 3+2 layout 60+1, or 2+2 layout 51+1, driver's seat ztzy1050.
Share With :
Detail image
Specifications
LCK6120A Coach Bus Details
Brand Zhongtong
Model LCK6120A Coach (Compass)
Suspension Multi-leaf spring suspension
Engine Model L325 20
Engine Type 6 cylinders in-line, turbocharged with intercooler
Steering Integral assistant power steering
Length 11450mm
Width 2550mm
Height 3850mm
Wheelbase 5800mm
Max Speed 120km/h
Max Power 239kw
Max Torque 1350N.M
Clutch Coil spring, 430
Front Axle 7.5t front axle
Rear Axle 13t third axle
Fuel Tank Capacity 400liters+400liters
Gearbox S6-160, ZF technology, six gears
Brake Dual circuit air braking, drum brake
Tyre 315/80R22.5 double coin
Seat Fixing type cloth seatsztzy3072, 3+2 layout 60+1, or 2+2 layout 51+1, driver seat ztzy1050
