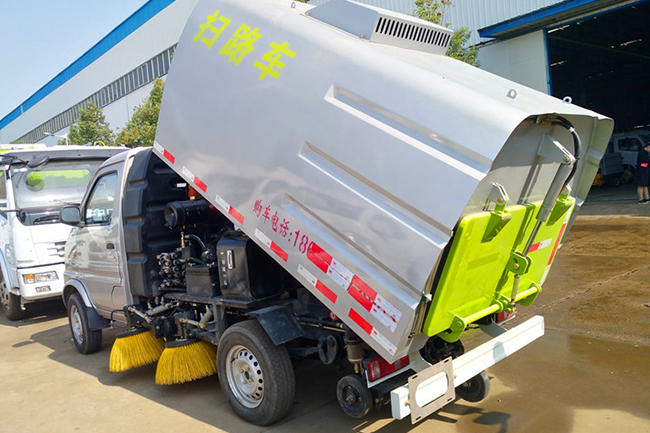

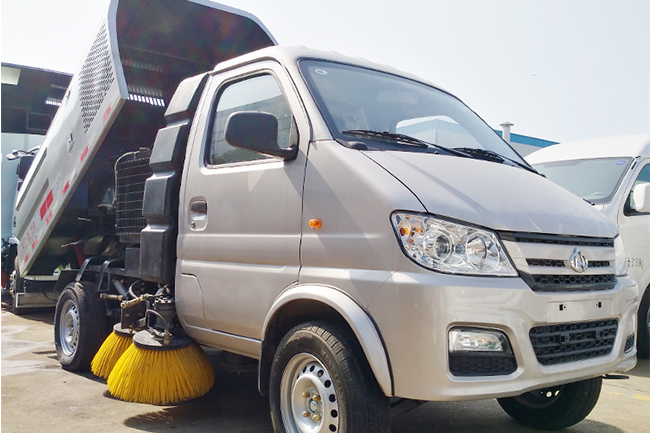

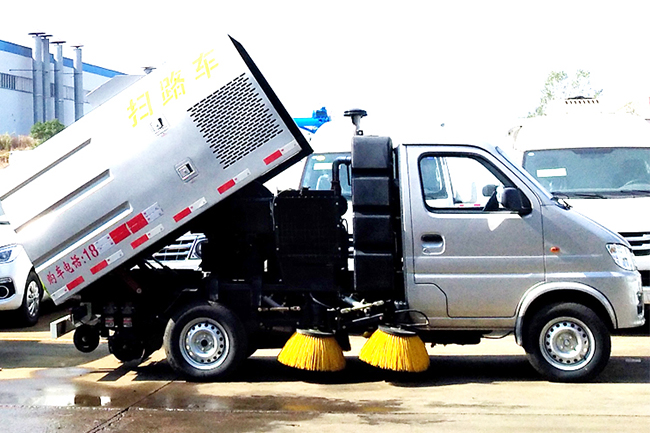

Changan petrol small road sweeper basic configuration

01 ISO9001, CCC, OEM certificate.
02 Maximum sweeping width 2.2m, inhaled sizeφ120 mm
03 Changan petrol small road sweeper/Mini rode sweeper/gasoline street sweeper/Driving vacuum cleaner etc
04 Euro 5 emission standard; central set of 4 sweeping pan; Sanyo motor; Ryan 31 horsepower auXiliary engine; Schneider control switch; Hai Purui solenoid valve group; stepless speed automatic clutch; maintenance-free centrifugal fan; stainless steel waste bin ; Shanghai XinXishan electronic water pump; dustbin lifting and unloading; tail LED arrow light, manual pump emergency system; cleaning width 2.2 meters; suction and particle size diameter 120mm.
05 Sweeper optional configuration: front flushing and rear sprinkle, garbage BoX self-cleaning function, reversing image operation monitoring.
06 Many kinds of road sweeper trucks for choose, such as QingLing,ISUZU,Howo, Dongfeng, JMC, JAC,CHANA ,etc.

Specifications

Item	Parameter
Production name	Changan road Mini Stree Sweeper
vehicle model	TS5030TSLSC5
Engine	Engine model: DK12-10
	Engine manufacturer:Chongqing Xiaokang power co., LTD
	EXhaust: 1240ml
	Power: 31hp
Chassis model	SC1031GDD53
Tire	Tire specification: 165R14LT
Tire	Number of tire: 4+ 1 spare
Axle	Number of aXles: 2
	Axle-load:1350/2145kg
	Wheel base(mm): 2990mm
Traction system	4*2
Tank fact cubage(cbm)	2.5 m3 dustbin, 0.7 m3 clean water tank
GVW(kg)	3495
Curb weight(kg)	2800
Overall dimensions(mm)	5200X1650X2300(mm)
F / R track base(mm)	1330/1210mm
F/R overhang(mm)	640/1570mm
Approach / departure angle(°)	40/19°
MaX speed(Km/h)	103
